Wholesale Price China Small Hydraulic Piston - DC 12V/24V 1.6KW Single Acting Hydraulic Power Packs with 2 Meters Cable Control – Oumai Detail:

Main Specifications

Motor: DC 12V/24V 1.6KW, 2800rpm, S3 type
Solenoid valve: 2/2 way single acting solenoid valve with emergency button
Pump displacement: 1.1CC/REV
System flow: 3.0lpm
Tank: 8L steel round tank
Mounting type: Horizontal
2 meters cable remote control

The motor type Specifications and parameters
voltage power
Ac motor three-phase AC380V 0.75KW, 1.1Kw, 1.5KW, 2.2KW, 3.0KW, 4.0KW Etc.
Single phase AC220V 0.75KW, 1.1KW, 1.5KW, 2.2KW, 3.0KW
Dc motor A long time DC24V 0.8KW
DC48V 1KW, 1.5KW, 2.2KW
DC60V 1KW, 1.5KW, 2.2KW
DC72V 1KW, 1.5KW, 2.2KW
A short time DC12V 0.8KW, 1.6KW, 2.2KW
DC24V 0.8KW, 1.6KW, 2.2KW, 4KW
DC48V 0.8KW, 1.5KW, 2.2KW
DC60V 0.8KW, l.5KW. 2.2KW
DC72V 0.8KW,1.5KW,2.2KW
Displacement (ml/r) 0.55, 0.75, 1.1, 1.6, 2.1, 2.5, 3.2, 4.2, 4.8, 5, 5.2, 5.8, 6.8, 7.8, 8
Tank type and size (unit: mm)
Square horizontal/vertical 8L 200*200*200 Circular horizontal/vertical 2L 120*200
10L 250*200*200 3L 179*180
12L 300*200*200 4L 179*225
14L 350*200*200 5L 179*260
16L 400*200*200 6L 179*290
20L 360*220*250 7L 179*330
30L 380*320*250 8L 179*360
40L 400*340*300 10L 179*430
12L 179*530

Product features

1. Small size, light weight, full power, and can be used in many occasions
2. Good production and poor quality
3. Reasonable and compact structure, small floor area, convenient installation and long service life
4. After optimized design, the operation is stable and easy to use
5. Products can be customized according to drawings
6. Low fuel consumption, low oil temperature, low noise, high efficiency and durability.

Company advantage

1. Customized service: products can be customized according to customer drawings and needs.
2. After sales service: if you encounter problems during installation and use, you can contact us at any time and we will provide guidance
3. Quality assurance: we strictly control the production process of products to ensure product quality
4. Professional team: the company has a professional design team with rich product operation experience

This power unit is widely used on trailers and trucks or small lift tables.

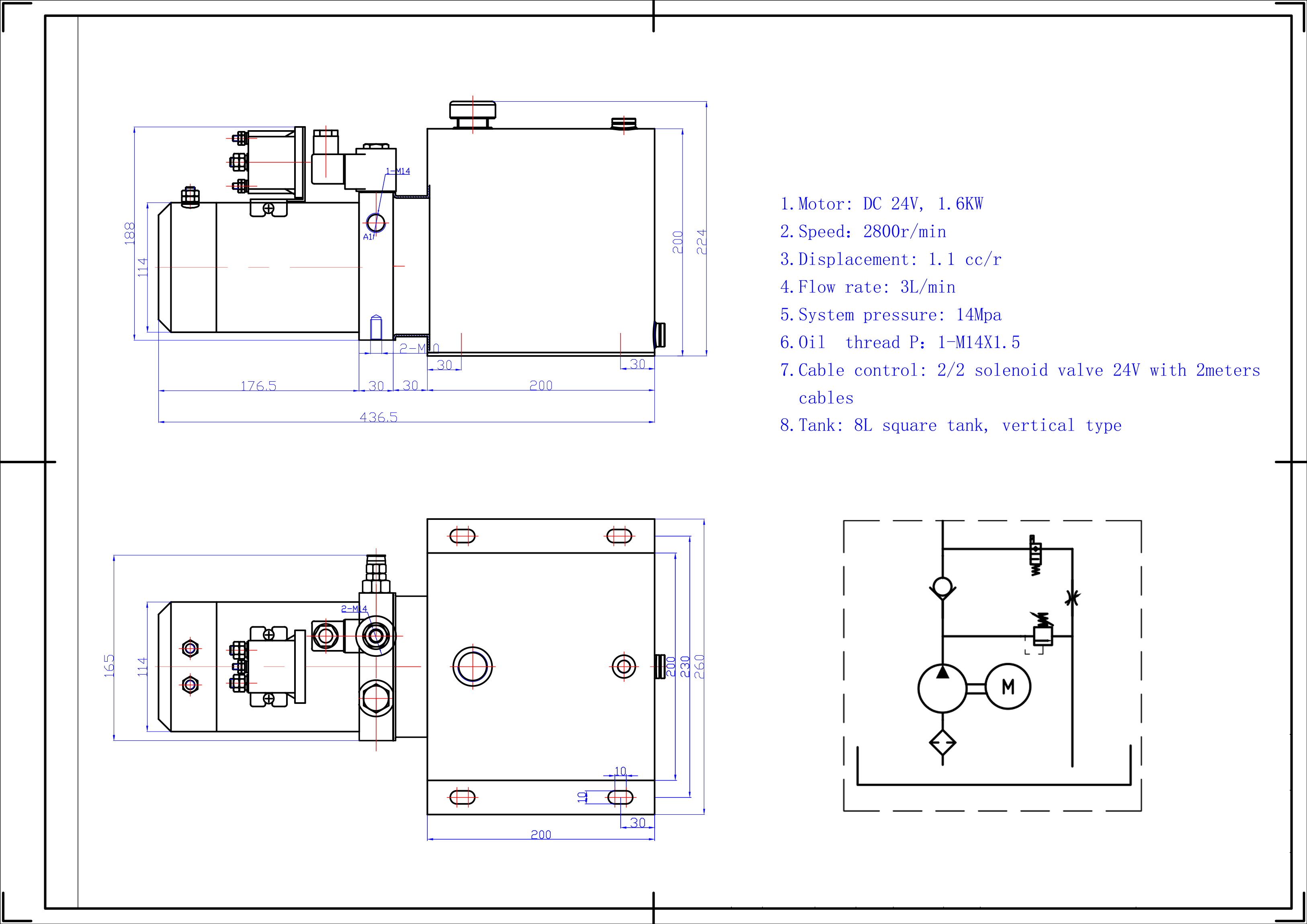

布局3-布局2-布局1-图纸
