Reasonable price Welded Hydraulic Cylinder - DC12V/24V 2.2KW Double Acting Hydraulic Power Packs with Wireless Remote Control – Oumai Detail:

Main Specifications

Motor: 12/24/48/60/72V
Power: 2.2kw
Pump displacement: 2.1cc/r
Hydraulic system flow: 5.88L/min
Pressure: 20Mpa
Tank: 6L round steel

Performance and principle introduction

The micro hydraulic power unit is a kind of micro fluid which uses the cartridge valve block to connect the motor, pump, valve and fuel tank together
Pressure power pump station. Compared with the specification of hydraulic station, it has small size, compact structure, light weight, low cost and use
Simple operation, convenient maintenance and so on. This product has complete functions, low noise, smooth operation, high efficiency and no leakage
Low. As a small hydraulic cylinder, hydraulic motor power source is very suitable, widely used in engineering machinery, automobile, agricultural machinery,
Machine tools, medical, health and environmental protection, hydraulic machinery and tools, lifting platform, automation and other industries. Voltage specifications are
DC12V/DC24V/DC48V/DC72V /. AC110V AC220V/AC380V, etc. This series of products start by oil pump
Up, electromagnetic check valve to achieve descent, additional emergency descent and descent speed regulation function, can be used for leather machinery hydraulic power sheet
Cable mechanical hydraulic power unit, forklift hydraulic power unit, etc. The company can design functions according to customer requirements.

The motor type Specifications and parameters
voltage power
Ac motor three-phase AC110/380/460V 0.75KW, 1.1Kw, 1.5KW, 2.2KW, 3.0KW, 4.0KW Etc.
Single phase AC220V 0.75KW, 1.1KW, 1.5KW, 2.2KW, 3.0KW
Dc motor A long time DC24V 0.8KW
DC48V 1KW, 1.5KW, 2.2KW
DC60V 1KW, 1.5KW, 2.2KW
DC72V 1KW, 1.5KW, 2.2KW
A short time DC12V 0.8KW, 1.6KW, 2.2KW
DC24V 0.8KW, 1.6KW, 2.2KW, 4KW
DC48V 0.8KW, 1.5KW, 2.2KW
DC60V 0.8KW, l.5KW. 2.2KW
DC72V 0.8KW,1.5KW,2.2KW
Displacement (ml/r) 0.55, 0.75, 1.1, 1.6, 2.1, 2.5, 3.2, 4.2, 4.8, 5, 5.2, 5.8, 6.8, 7.8, 8
    Tank type and size (unit: mm)
Square horizontal/vertical 8L 200*200*200 Circular horizontal/vertical 2L 120*200
10L 250*200*200 3L 179*180
12L 300*200*200 4L 179*225
14L 350*200*200 5L 179*260
16L 400*200*200 6L 179*290
20L 360*220*250 7L 179*330
30L 380*320*250 8L 179*360
40L 400*340*300 10L 179*430
    12L 179*530

9

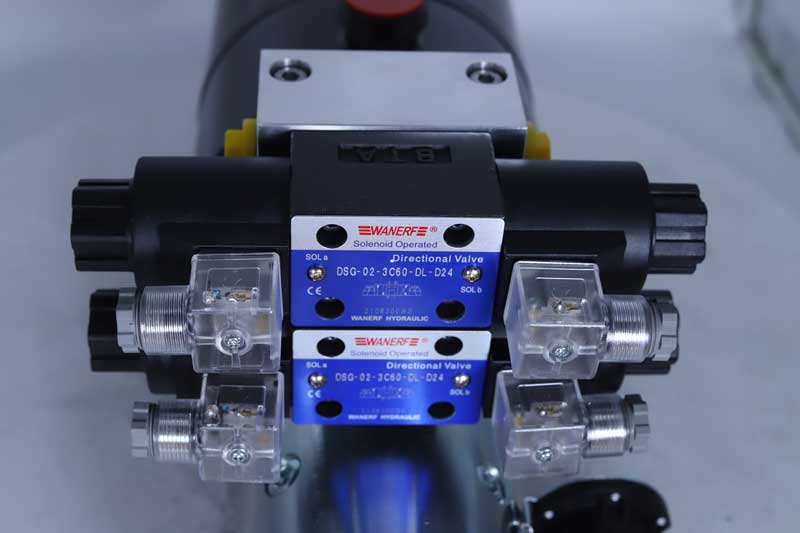

DC12V-24V-2.2KW-Double-Acting-Hydraulic-Power-Packs-with-Wireless-Remote-Control05
DC12V-24V-2.2KW-Double-Acting-Hydraulic-Power-Packs-with-Wireless-Remote-Control06
DC12V-24V-2.2KW-Double-Acting-Hydraulic-Power-Packs-with-Wireless-Remote-Control07


Product detail pictures:

Reasonable price Welded Hydraulic Cylinder - DC12V/24V 2.2KW Double Acting Hydraulic Power Packs with Wireless Remote Control – Oumai detail pictures

Reasonable price Welded Hydraulic Cylinder - DC12V/24V 2.2KW Double Acting Hydraulic Power Packs with Wireless Remote Control – Oumai detail pictures

Reasonable price Welded Hydraulic Cylinder - DC12V/24V 2.2KW Double Acting Hydraulic Power Packs with Wireless Remote Control – Oumai detail pictures

Reasonable price Welded Hydraulic Cylinder - DC12V/24V 2.2KW Double Acting Hydraulic Power Packs with Wireless Remote Control – Oumai detail pictures
